Channel Letter Signs: The Complete Buyer's Guide for 2026
Channel letter signs are the workhorse of modern storefront branding — three-dimensional, individually fabricated letters that read cleanly by day and glow at night. If you've walked past a modern retail center, restaurant, or medical office, you've seen them.
This guide covers every decision point: lighting style, materials, mounting, permitting, cost, and lifespan. By the end, you'll be able to spec a channel letter set with confidence and avoid the three most common mistakes we see on repair calls.
What is a channel letter sign?

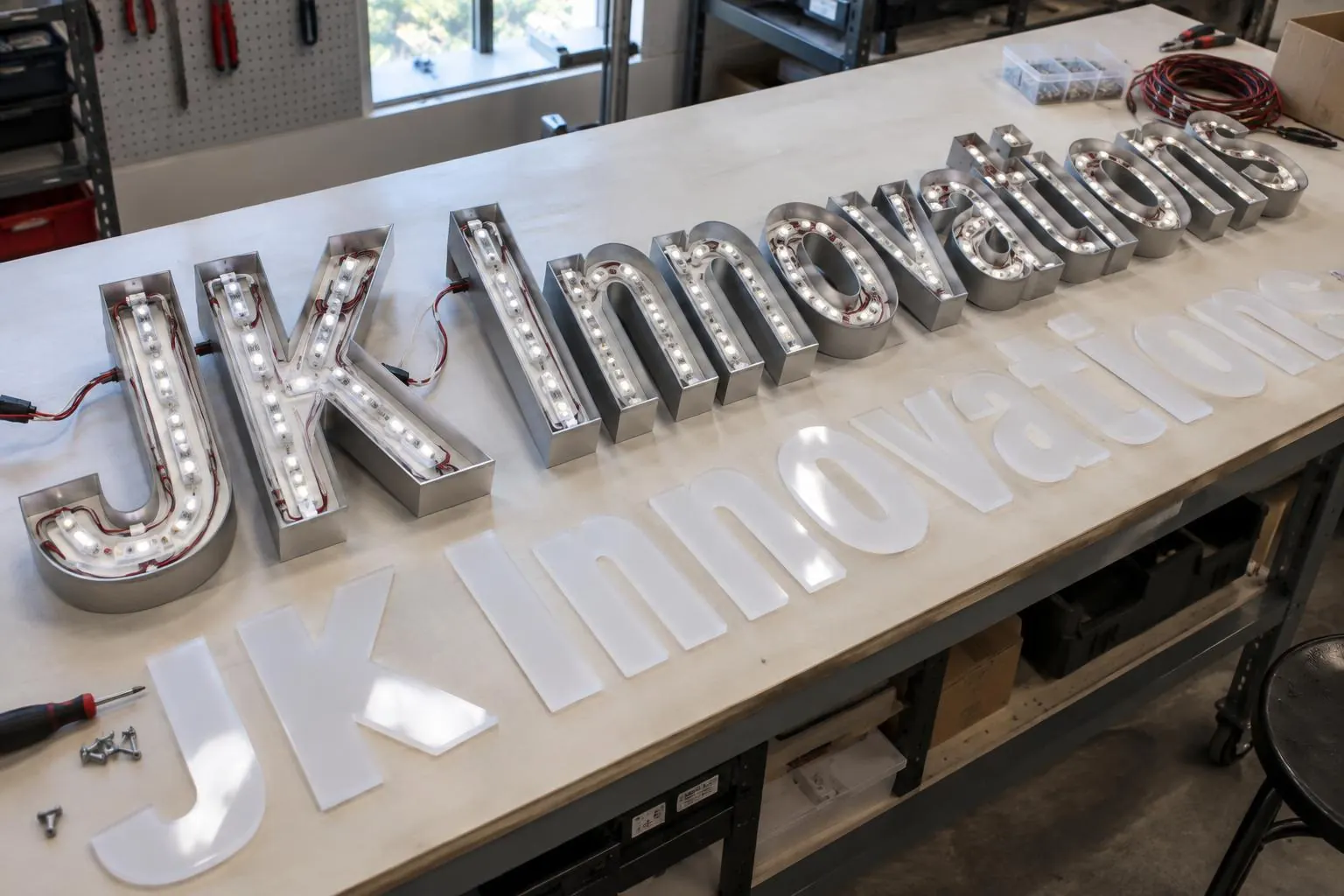

A channel letter is a fabricated 3D letter — typically 4 to 24 inches tall — with a metal 'can' or return, a translucent acrylic face, and an internal LED module. Each letter is built individually, then mounted to a raceway, a backer panel, or directly to the wall.
Because every letter is a discrete object, channel letters can be scaled to almost any storefront width. A 40-foot façade doesn't need a 40-foot sign box — it needs correctly-sized letters, spaced and mounted for the architecture.
The four lighting styles
The lighting style you pick defines the sign's visual personality and its cost. Here's how they compare:
- Front-lit (standard): translucent acrylic face glows outward. Highest contrast at night, most legible from a distance. The default for retail and quick-service restaurants.
- Back-lit / halo-lit: LEDs face the wall and light bounces back around the letter, creating a soft glow. Premium, architectural look for finance, law, medical, and hospitality brands.
- Front-lit + halo (combination): both faces illuminate. High visual impact, higher energy and material cost.
- Open-face: exposed LED or neon tubing without an acrylic face — classic bar, brewery, and restaurant aesthetic.
Materials and construction
Standard construction is a 5-inch deep aluminum return, a trim cap edge, and a 3/16-inch acrylic face. On premium jobs we upgrade to fabricated stainless returns or deep-formed aluminum for a monolithic look.
Every LED module we install is UL-listed with a matched low-voltage power supply. Cheap import modules fail early and burn dark spots into the acrylic — a recurring service call we get on signs someone else built.
Mounting methods in Southwest Washington
How the letters attach to the wall matters as much as the letters themselves. There are three real options:
- Flush mount (individual): each letter attaches directly to the wall on standoffs. Cleanest look. Requires all wiring to route through the wall.
- Raceway mount: letters attach to a painted aluminum enclosure that houses the wiring and power supply. One penetration through the wall. Landlord-friendly.
- Backer panel mount: letters attach to a decorative background panel that mounts to the wall. Great for masonry, EIFS, or when the wall itself won't take individual penetrations.
How much do channel letters cost in 2026?
Real pricing ranges — including fabrication, installation, and electrical hookup for a Southwest Washington project:
- Small set (single word, 12-inch letters, front-lit): $3,500 – $6,500
- Standard retail set (business name, 18-inch letters, front-lit, raceway): $6,500 – $12,000
- Premium halo-lit set (24-inch letters, backer panel): $12,000 – $22,000
- Multi-tenant or shopping center scale: $25,000+
Permits and lead time
Almost every municipality in Washington requires a sign permit for illuminated exterior signs. Depending on the jurisdiction, expect two to eight weeks of permit review on top of two to four weeks of fabrication.
We handle the entire permit package in-house — sizing to code, engineering stamps when required, and the electrical permit that has to accompany any wired sign.
Lifespan and maintenance
A properly built channel letter sign should give you 10–15 years of daily service. LED modules are rated 50,000+ hours. The most common failure isn't the LEDs — it's power supplies and water infiltration through poor sealing.
Our recommendation: annual visual inspection, and a full maintenance service every 3–5 years to reseal, clean, and replace any degraded components.
Frequently asked questions
- How long does it take to get channel letters installed?
- Plan on 6–10 weeks from signed proposal to install: design (1 week), permit submittal and review (2–6 weeks), fabrication (2–3 weeks), and installation (1 day).
- Are channel letters energy efficient?
- Yes — modern LED channel letters use 60–80% less power than the fluorescent signs they replaced a decade ago. A typical 20-letter set draws less than a standard household appliance.
- Can I retrofit an old channel letter sign to LED?
- In most cases, yes. We remove the faces, strip the old lighting, install matched LED modules and a new power supply, then reseal. It's substantially cheaper than a full replacement.
